DH-SD1A203TN-GN – DAHUA DH-SD1A203T-GN 2MP 3x Starlight IR PTZ Network Cam With Powerful 3x optical zoom IVS Support PoE Wide Dynamic Range SD1A203T-GN
DH-SD1A203TN-GN – DAHUA DH-SD1A203T-GN 2MP 3x Starlight IR PTZ Network Cam With Powerful 3x optical zoom IVS Support PoE Wide Dynamic Range SD1A203T-GN
SD1A203T-GN
2MP 3x Starlight IR PTZ Network Cam
> 1/2.8″ 2Megapixel STARVIS ™ CMOS
> Effective 3x optical zoom
> Starlight, WDR
> Max. 25/30fps@1080P
> IVS
> Support PoE
> IR distance up to 15m
> IP66
SD1A203T-GN – DAHUA DH-SD1A203T-GN 2MP 3x Starlight IR PTZ Network Electronic Camera With Powerful 3x optical zoom IVS Support PoE Wide Dynamic Array SD1A203T-GN without logo SYSTEM SUMMARY
Featuring powerful optical zoom and accurate pan/tilt/zoom efficiency, the video camera offers a broad tracking variety and also terrific information. The electronic camera supplies 1080P resolution at 25/30fps. The camera is equipped with smooth control, top quality photo, and also good protection, meeting portable size demands of video clip surveillance applications.
advanced AI modern technologies
DAHUA Smart Shop option
SD1A203T-GN – DAHUA DH-SD1A203T-GN 2MP 3x Starlight IR PTZ Network Cam With Powerful 3x optical zoom IVS Assistance PoE Wide Dynamic Array SD1A203T-GN without logo FUNCTIONS
Starlight Innovation
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology provides best-in-class light level of sensitivity, catching shade information in low light down to 0.005 lux. The camera makes use of a collection of optical functions to stabilize light throughout the scene, leading to clear pictures in dark settings
Environmental
cameras operate in severe temperature environments, ranked for use in temperatures from -40 ° C to +70 ° C (-40 ° F to +158 ° F) with 95% moisture. Subjected to extensive dust as well as water immersion examinations as well as licensed to the IP67 Access Defense ranking makes it suitable for requiring outdoor applications.
Protection
The electronic camera allows for -5%|+10% input voltage resistance, ideal for the most unstable problems for outdoor applications. Its 8KV lightning score supplies effective protection for both the cam and its structure against lightning.
Wide Dynamic Range
The electronic camera attains dazzling photos, even in the most extreme comparison illumination problems, utilizing industry-leading vast vibrant range (WDR) modern technology. For applications with both bright as well as low lighting problems that transform rapidly, Real WDR maximizes both the bright and dark locations of a scene at the same time to supply functional video.
Smart H. 265+.
Smart H. 265+ is the optimized application of the H. 265 codec that makes use of a scene-adaptive encoding technique, vibrant GOP, dynamic ROI, adaptable multi-frame reference framework and smart noise decrease to provide high-quality video without straining the network. Smart H. 265+ technology minimizes little bit rate and storage demands by approximately 70% when contrasted to basic H. 265 video compression.
SD1A203T-GN – DAHUA DH-SD1A203T-GN 2MP 3x Starlight IR PTZ Network Camera With Powerful 3x optical zoom IVS Support PoE Wide Dynamic Variety SD1A203T-GN without logo design PHOTO.
DAHUA DH-SD1A203T-GN DAHUA SD1A203T-GN, DAHUA DH-SD1A203T-GN, SD1A203T-GN, DH-SD1A203T-GN, DH-SD1A203TP-GN, DH-SD1A203TN-GN,1 A203TNI, wholesales DAHUA PTZ Network Camera.
SD1A203T-GN – DAHUA DH-SD1A203T-GN 2MP 3x Starlight IR PTZ Network Camera With Powerful 3x optical zoom IVS Support PoE Wide Dynamic Array SD1A203T-GN MEASUREMENTS.

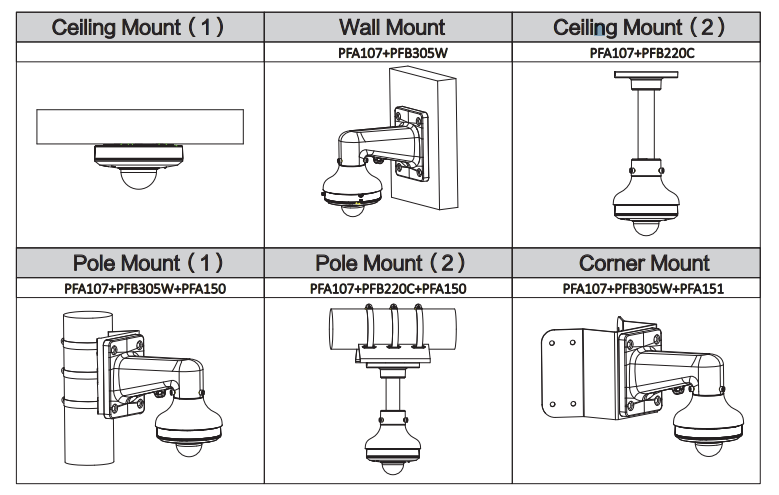

SD1A203T-GN – DAHUA DH-SD1A203T-GN 2MP 3x Starlight IR PTZ Network Electronic Camera With Powerful 3x optical zoom IVS Support PoE Wide Dynamic Variety SD1A203T-GN design INSTALLMENT.
SD1A203T-GN – DAHUA DH-SD1A203T-GN 2MP 3x Starlight IR PTZ Network Camera With Powerful 3x optical zoom IVS Support PoE Wide Dynamic Range SD1A203T-GN without logo design TECHNICAL REQUIREMENTS.
******.
Cam.
Picture Sensor.
1/2.8″ STARVIS ™ CMOS.
Reliable Pixels.
1920( H) x 1080( V), 2 Megapixels.
RAM/ROM.
512M/128M.
Scanning System.
Progressive.
Digital Shutter Speed.
1/1s|1/30,000 s.
Minimum Illumination.
Color: 0.005Lux@F1.8; B/W: 0.0005Lux@F1.8; 0Lux@F1.8 (IR on).
S/N Ratio.
Greater than 50dB.
IR Range.
Distance as much as 15m (49.2 feet).
IR On/Off Control.
Auto/Manual.
IR LEDs.
3.
Lens.
Focal Length.
2.7 mm|8.1 mm.
Max. Aperture.
F1.8.
Angle of Sight.
H: 105.6 °|35.2 °
.
Optical Zoom
.
3x.
Focus Control.
Auto/Manual. Close Emphasis Distance.
100mm|1000mm. DORI Distance. Note: The DORI distance is a” basic proximity” of distance that makes it simple to identify the ideal cam for your demands. The DORI distance is calculated based upon sensing unit requirements and laboratory test result according to EN 62676-4 which specifies the requirements for Detect, Observe, Recognize as well as Identify specifically.
Detect.
Observe.
Identify.
Determine.
100.4 m( 329.4 ).
40.2 m( 131.9 ft).
20.1 m( 65.9 ft).
10m( 32.8 ft).
PTZ.
Pan/Tilt Variety.
Pan: 0 °|355 °; Tilt: 5 ° |
90 °. Guidebook Control Speed. Frying pan: 0.1 ° |
70 °/ s; Tilt: 0.1 ° |
30 °
/ s. Preset
Speed.
Frying pan: 80 °/ s; Tilt: 40 °/ s. Presets.
300.
PTZ Mode. 8 Trip. Speed Setup. Human-oriented focal Length/speed adjustment. Power up Action. Vehicle bring back to previous PTZ as well as lens status after power failing.
Idle Motion.
Trigger Preset/Tour if there is no command in the specific period.
Procedure.
DH-SD.
Intelligence.
Occasion Trigger.
Movement discovery, Video tampering, Network disconnection, IP address dispute, Illegal access, Storage space anomaly.
Car Tracking.
N/A.
IVS.
Tripwire, Intrusion, Abandoned/Missing.
Advanced Intelligent Functions.
Face Discovery.
Video clip.
Compression.
H. 265+/ H. 265/H.264+/ H. 264.
Streaming Capacity.
3 Streams.
Resolution.
1080P( 1920 × 1080)/ 720P( 1280 × 720)/ D1( 704 × 576/704 × 480)/ CIF( 352 × 288/352 × 240).
Framework Price.
Key stream: 1080P/720P( 1|25/30fps).
Below stream1: D1/CIF( 1|25/30fps).
Sub stream2: 720P/D1/CIF( 1|25/30fps).
Bit Rate Control.
CBR/VBR.
Little bit Price.
H. 265/H.264: 448K|8192Kbps.
Day/Night.
Auto( ICR)/ Color/ B/W.
Backlight Compensation.
BLC/ HLC/ WDR( 120dB).
White Equilibrium.
Auto, ATW, Indoor, Outdoor, Handbook.
Gain Control.
Vehicle/ Manual.
Noise Decrease.
Ultra DNR (2D/3D).
Movement Discovery.
Assistance.
Area of Passion.
Support.
Electronic Picture Stabilization (EIS).
N/A.
Defog.
Support.
Digital Zoom.
16x.
Flip.
180 °
.
Privacy Masking.
As much as 24 locations.
Sound.
Compression. G. 711a/G.711 mu/G.726/ AAC.
Network.
Ethernet.
RJ-45 (10XBase-T/100Base-TX).
Procedure.
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1 x.
Interoperability.
ONVIF Profile S&G, API.
Streaming Method.
Unicast/ Multicast.
Max. User Accessibility.
20 individuals.
Side Storage space.
NAS (Network Attached Storage Space), Regional COMPUTER for instant recording, Micro SD card 256GB.
Web Customer.
IE, Chrome, Firefox, Safari.
Administration Software.
Smart PSS, DSS, DMSS.
Cellular phone.
IOS, Android.
Certifications.
Qualifications.
CE: EN55032/EN55024/EN50130 -4.
FCC: Part15 subpartB, ANSI C63.4- 2014.
UL: UL60950-1+ CAN/CSA C22.2,No.60950-1.
Interface.
Video clip Interface.
N/A.
RS485.
N/A.
Audio I/O.
Mic in/Line in, Line out.
Alarm system I/O.
N/A.
Electrical.
Power Supply.
DC 12V/1.5 A, PoE( 802.3 af).
Power Intake.
7.8 W, 10.5 W (IR on).
Environmental.
Running Problems.
-30 ° C|60 ° C( -22 ° F|+140 ° F)/ Much Less than 95% RH.
Ingress Defense.
IP66.
Vandal Resistance.
IK08.
Construction.
Covering.
Metal.
Measurements.
Φ128( mm) x 63( mm).
Internet Weight.
0.49 kg( 1.08 lb).
Gross Weight.
0.73 kg( 1.6 pound).
